radiant heat floor

FOB Price:

US 10-113 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Square per Meter/Square

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,paypal

Brand:

SENPHUS

Products Model:

SHHM-90w/m2

Products Details
Company Profile

Quick Details

Brand Name: SENPHUS

Model Number: SHHM-90w/m2

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: carton, pallet or wooden box
Delivery Detail: within 7 days

Specifications

SENPHUS radiant heat floor :

Product Description

General Information

All Senphus radiant floor heating system features adhesive fiber-reinforced mesh backing which can be cut and manipulated, and which allows to lay the mat flat onto the subfloor surface and keep it flat throughout the installation process.

1.Single point connection
2.Twin conductor cable or single core you choose
3.Emits zero EMF (electromagnetic fields)
4.Safety approved for wet locations
5.Flexible installation
6.Durable construction
7.15-year limited warranty and 50 year service life
8.0.5m width. If mats are 12sqm, it is 0.5m*24m.
9.CE, SAA, UL approvals
10.Cable spacing: 70mm or 90mm

1.Single point connection

2.Twin conductor cable or single core you choose

3.Emits zero EMF (electromagnetic fields)

4.Safety approved for wet locations

5.Flexible installation

6.Durable construction

7.15-year limited warranty and 50 year service life

8.0.5m width. If mats are 12sqm, it is 0.5m*24m.

9.CE, SAA, UL approvals

10.Cable spacing: 70mm or 90mm

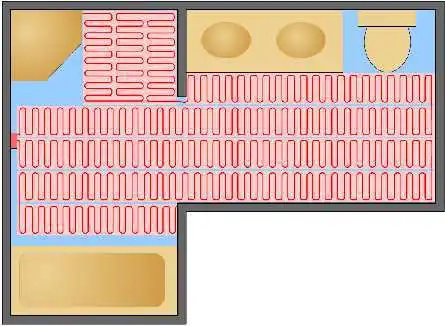

The floor warming system includes a heating cable woven into an adhesive-backed fiberglass mesh that allows for simple roll-out installation without worrying about heating cable spacing.

This specification is suit for FEP/ETFE insulation and outer FEP/ETFE/LSOH jacket, aluminum foil screen fixing installation heating cable.

Description and Structure

Products parameters

Cable Construction	Twin conductor
Rated Voltage	230V
Output	90W/m2 160W/m2 (-5% to +10%)
Cable spacing	90mm(90W/m2) 70mm(160W/m2)
Cable Diameter	3.0mm
Conductor Insulation	Fluoropolymer FEP
Outer Insulation	PVC/FEP/ETFE/LSOH resin
Min bending radius:	30mm
Max. Ambient Temp.	85°F(30°C)
Min. Installation Temp.	40°F(5°C)
Cold lead	2-wire plus ground braid; 2.0m length

Thermostat Specifications for your choice:

R8600
Functions	On/Off control, digital display, 7-day programmable
Power source	100-240VAC 50/60HZ
Relay contact	250VAC 16A
Room temperature setting range	5°C(41°F)~35°C(95°F)
Floor temperature setting range	5°C(41°F)~45°C(113°F)
Accuracy	±1°C or ±33.8°F
Dimensions	94mm X 87mm X44mm
Color	White
Floor temperature sensor	2-wire, 3.0m lead wire

R6900
Functions	On/Off control, digital display, 7-day programmable
Power source	198-242VAC 50/60HZ
Relay contact	250VAC 25A
Ambient temperature-operation	0°C-50°C
Ambient temperature-transport	-10°C-60°C
Room temperature setting range	5°C~35°C
Floor temperature setting range	5°C~60°C60°C(factory default 40°C)
Accuracy	±1°C
Dimensions	86mm X 86mm X13mm
Color	White
Floor temperature sensor	2-wire, 3.0m lead wire

Inspectiong and QUALITY CONTROL:

Packaging & Shipping

if you use white box or color box for each heating mats, the box size are as follows:

0.5 to 2 square meter, 9*9*52cm

2.5 to 5 square meter, 15*15*52cm

6 to 8 square meter, 18*18*52cm

9 to 12 square meter, 25*25*52cm

15 square meter, 32*32*52cm
