Industrial Evaporator Unit Cooler for Cold Storage Room

Industrial Evaporator Unit Cooler for Cold Storage Room

Price:

Open price

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

1000 Set per Year

Port:

Shanghai, China

Place of Origin:

China

Payment Terms:

Brand:

eCool

Products Model:

IVF

Products Details
Company Profile

Quick Details

Brand Name: eCool

Model Number: IVF

Place of Origin: China
Usage: Food
Warranty: 1-2 Years
Certification: ISO
Condition: New
Transport Package: Carton Case
Specification: depends on models
HS Code: 8418991000
Usage: Food
Warranty: 1-2 Years
Certification: ISO
Condition: New
Transport Package: Carton Case
Specification: depends on models
HS Code: 8418991000

Specifications

Features of Industrial series air cooler
flexible appearance with different choices such as suction air, blow air, delivery air from front, below are all available;
Drip tray nozzle is mounted at an angle of 45 °, condensate water could be completely
Technical Data
Fan diameter(mm) options: 400, 450, 500, 630, 800

Temperature Range	Evaporating temperature (To)	Air inlet temperature (Tr)	Refrigeration capacity
High	0ºC	10ºC	5.6~162.2kW
Middle	-8ºC	0ºC	2.8~111.7W
Low	-25ºC	-18ºC	1.8~88.1kW
lower	-31ºC	-25ºC	1.6~63.8kW

Air cooler whole series

Commercial series Air cooler
High-efficiency commercial series air cooler
Industrial series air cooler
Industrial series air cooler-Brine
Double side blowing air cooler
Double side blowing air cooler-Brine
Air cooler special for blast freezing

Application

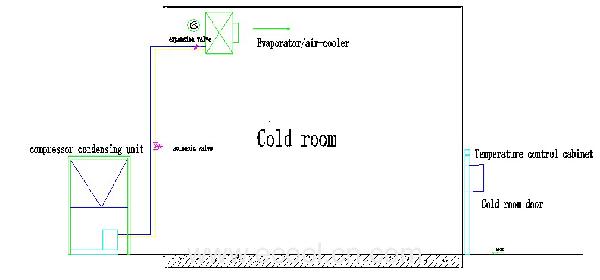

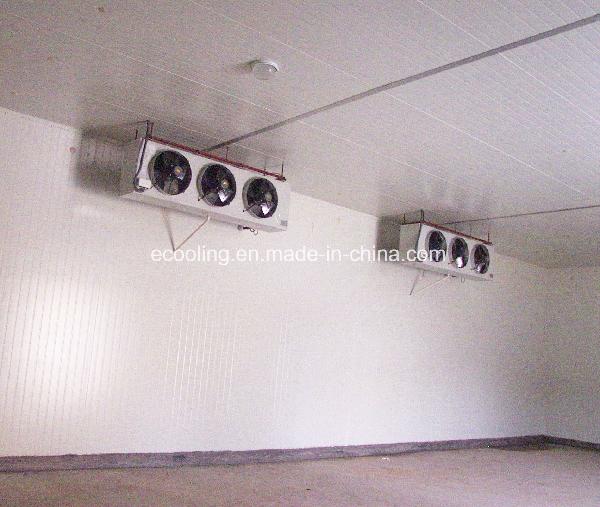

Cold storage, cold room rerigeration

Industrial Evaporator Unit Cooler for Cold Storage Room

ECOOL Air cooler Product Advantages
Rational Design

Experienced engineers use Italian advanced design software to design, meeting the demand accurately
Product suitable to the latest refrigerant such as R410A,CO2and other special refrigerants are available
Pipeline design adopts the direct oil return and counter-current heat exchanger to avoid the accumulation of refrigeration oil, which make full use of the heat transfer area, improve the heat exchange efficiency and ensure the degree of superheat

Reliable raw materials

The fans of air cooler are famous brand ZIEHL-ABEGG and EMB, reasonably match with the gap between blades and blast rings, and the design of hyperbolic air duct to achieve the maximum effect
Cooper tubes are multi-tooth and internal thread with high-efficiency. The copper rate is more than 99.9%. All of these increase the surface area and heat transfer efficiency.
Shell material of air cooler is 3003 aluminum alloy or DC51-D+180g. The paint is outdoor type and treated with high-temperature curing, which makes the shell high in strength and anti-corrosion.

Quality control in all

Management of factory was approved by ISO9001-2008 and product quality control is through all courses
Quality control in all: incoming quality control process inspection, finished product inspection.

Various choices

Provide multiple models and size, choices of fin and coil type to meet the demands of different applications
A variety of anti-corrosion treatment products, stainless steel products and other customized products are available

Product details

Factory photos

Factory certificates

Related products
Industrial Evaporator Unit Cooler for Cold Storage Room

ECOOL INTERNATIONAL TRADING (SHANGHAI)CO.,LTD is a company focusing on refrigeration industry.

It specializes in providing customized products, such as customized cooling coil, heat exhcnager, cold room projects, Meanwhile, providing high-quality refrigeration equipment, such as multi-head compressor rack, variable frequency screw type compressor rack, air cooler, insulation panel, and refrigeration controlling system.

Ecool has engineers of 15 years' experience in design, has been audited by SGS ;its factory is in Changzhou, passed ISO 9001certificate. It cooperates with many international brands' components, such as BITZER, DANFOSS, GUNTER to assure the quality of products, its products are applied in many industries including cold chain logistics, food processing, medicine, VOC treatment and chemistry.
For cold room project,Ecool built middle and large sized cold storage projects in African countries - Angola, Congo and Gabon, and its products are exported to South America, Middle East and Southeast Asia.
